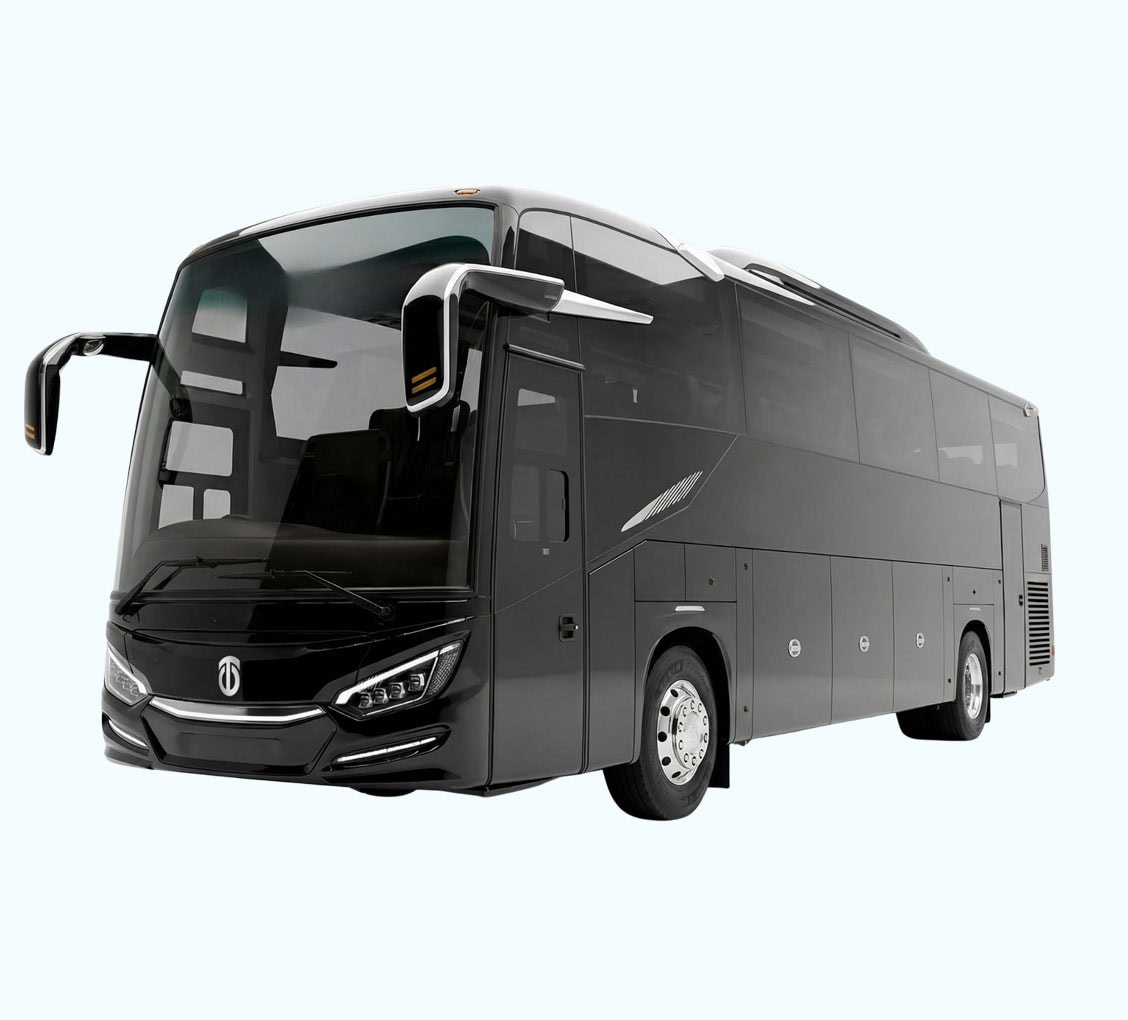

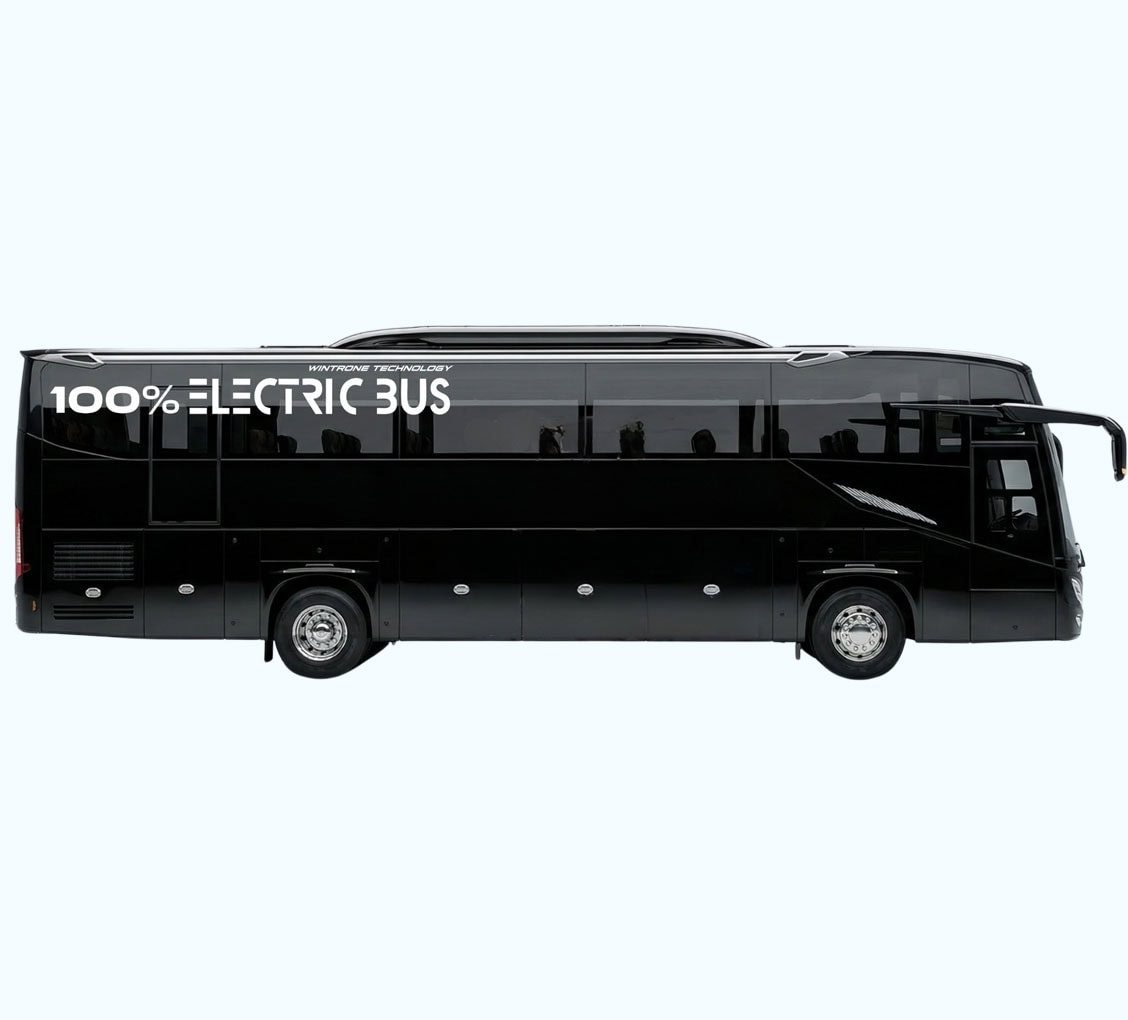

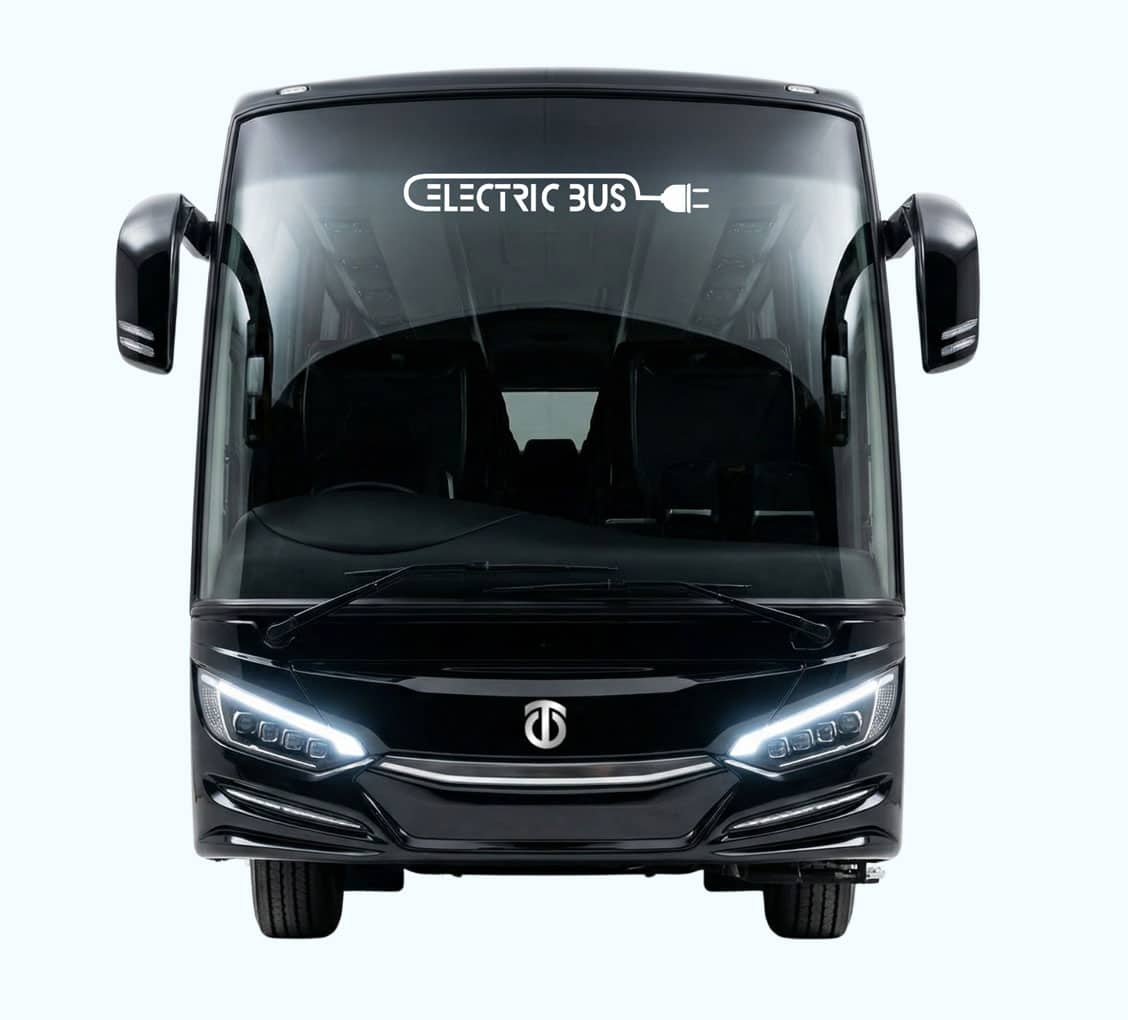

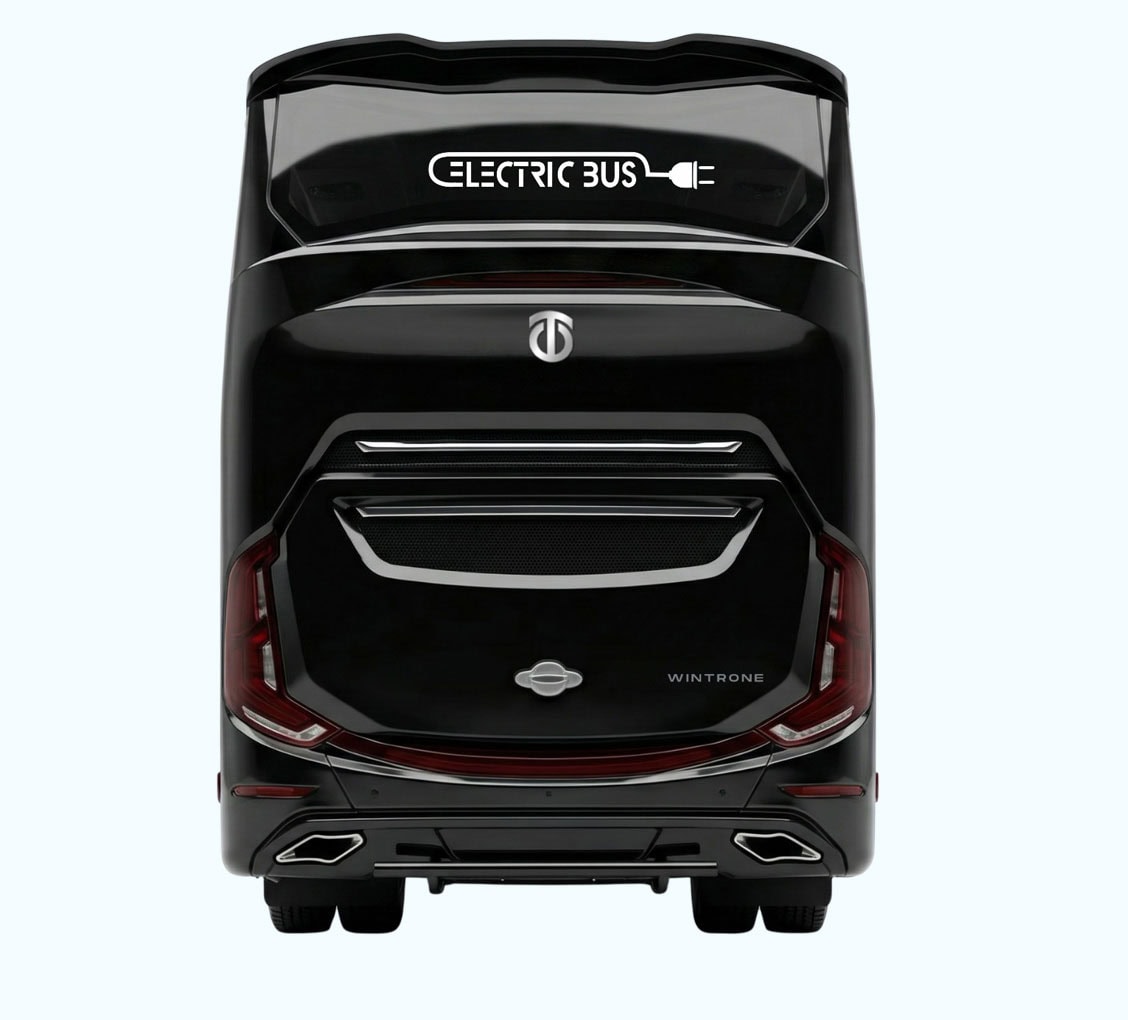

Orionis 12 – Low Entry High Deck is a 12-meter electric bus designed for high-capacity shuttle and urban mobility operations. Powered by a 370 kWh LiFePO4 battery, it offers a driving range of up to 300 km per charge, a maximum speed of 90 km/h, and capacity for up to 45 passengers. Equipped with liquid cooling battery technology, PMSM motor, air suspension, roof-mounted AC system, and CCS 2 DC charging, this electric bus delivers efficient, comfortable, and sustainable fleet performance.
| Brand | Wintrone |
|---|---|
| Product Type | Orionis 12 - Low Entry High Deck A/T 4x2 |
| Product Classification | Electric Bus 12 Meter |
| Application | Shuttle Bus |
| Range | Up to 300 km / Charge |
| Max Speed | 90 km/h |
| Max Gradeability | Up to 17% |
| Brake | Four Wheel Disc Brake With ABS |
| Length | 12,000 mm |
|---|---|
| Width | 2,500 mm |
| Height | 5,750 mm |
| Wheelbase | 5,890 mm |
| Ground Clearance | 170 mm |
| Turning Radius | 10,160 mm |
| Suspension | Air Suspension |
| Type | Lithium Ferro Phosphate / LiFePO4 |
|---|---|
| Capacity | 370 kWh |
| Cooling | Liquid Cooling |
| Type | Permanent Magnet Synchronous Motor / PMSM |
|---|---|
| Power Rated / Peak | 195 / 350 kW |
| Max Torque | Up to 3,500 Nm |
| Type | Roof Mounted AC System |
|---|---|
| Cooling Capacity | 35 kW |
| Tire Size | 11R 22.5 148/145 L |
|---|

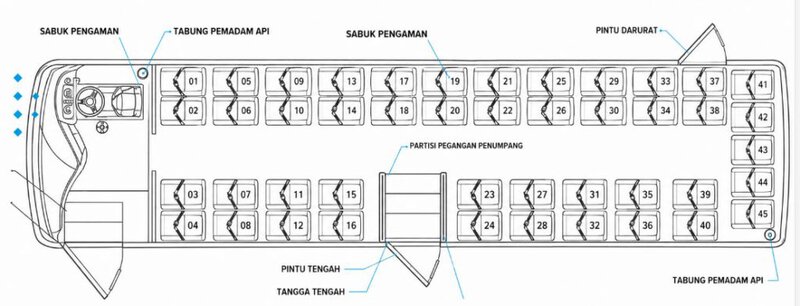

| Capacity | Up to 45 Passengers |
|---|---|
| Passenger Door | A. 1 Front Left Side Swing Door B. 1 Center Left Side Swing Door |
| Port | CCS 2 |
|---|---|
| Charger | DC Charger |
| DC Charger | Floor-Mounted Dual Guns DC Charging |
| Charger Capacity | Up to 120 kW |
| Charging Time | Approx. 4 hours / 20–100% |
| Voltage Rating - Input | 380 - 410 ±10% VAC 3 Phase |
| Voltage Rating - Output | 560 - 610 ±10% VDC |
