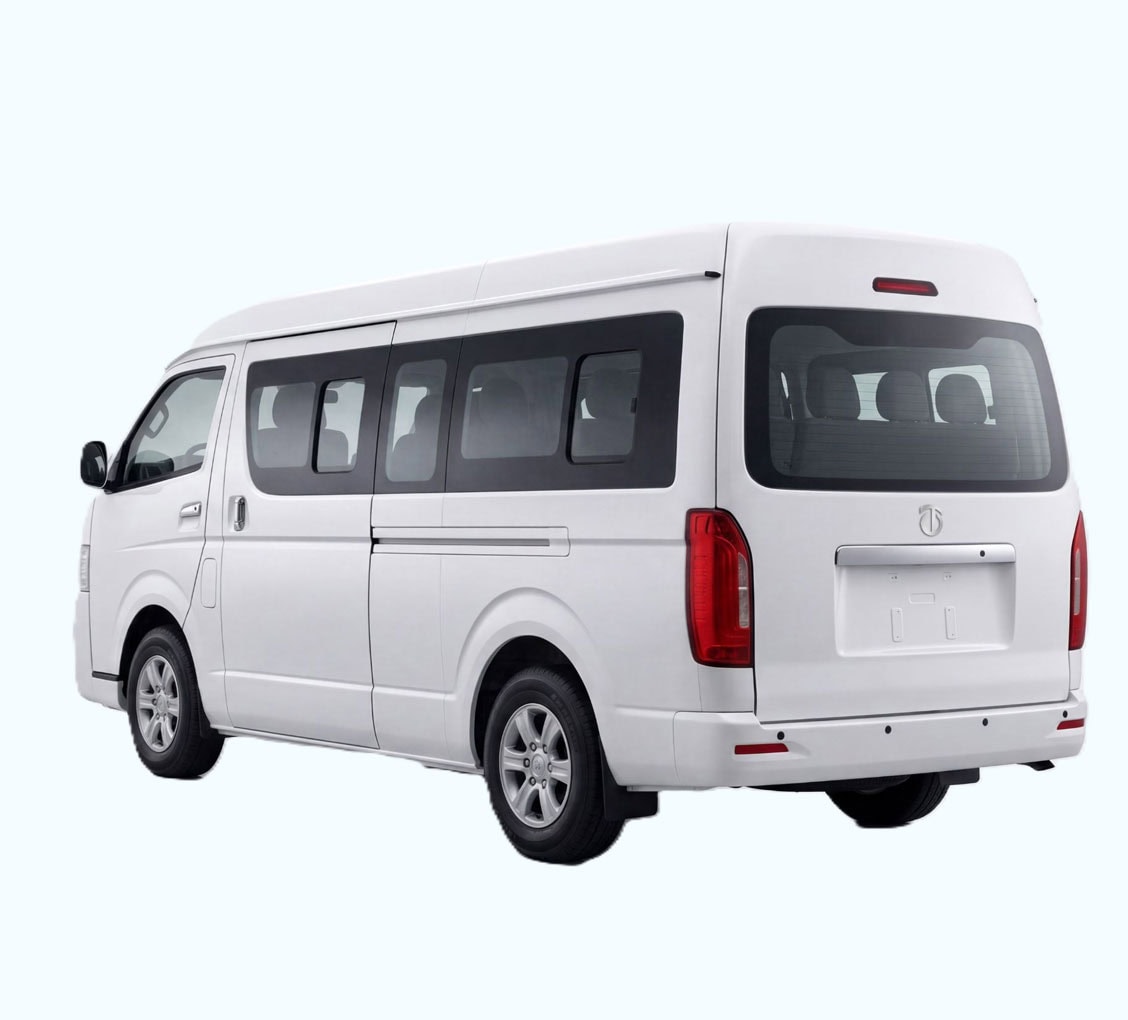

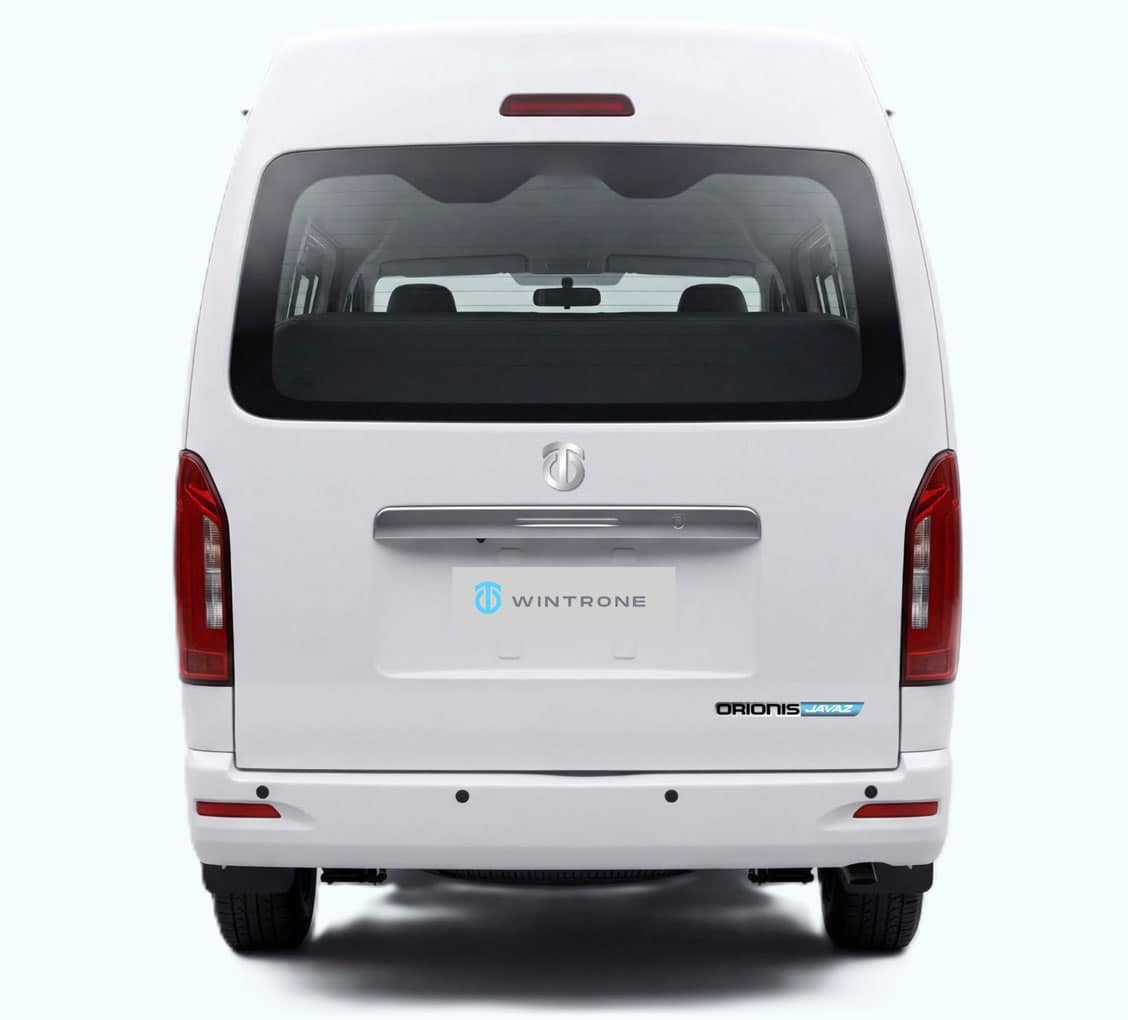

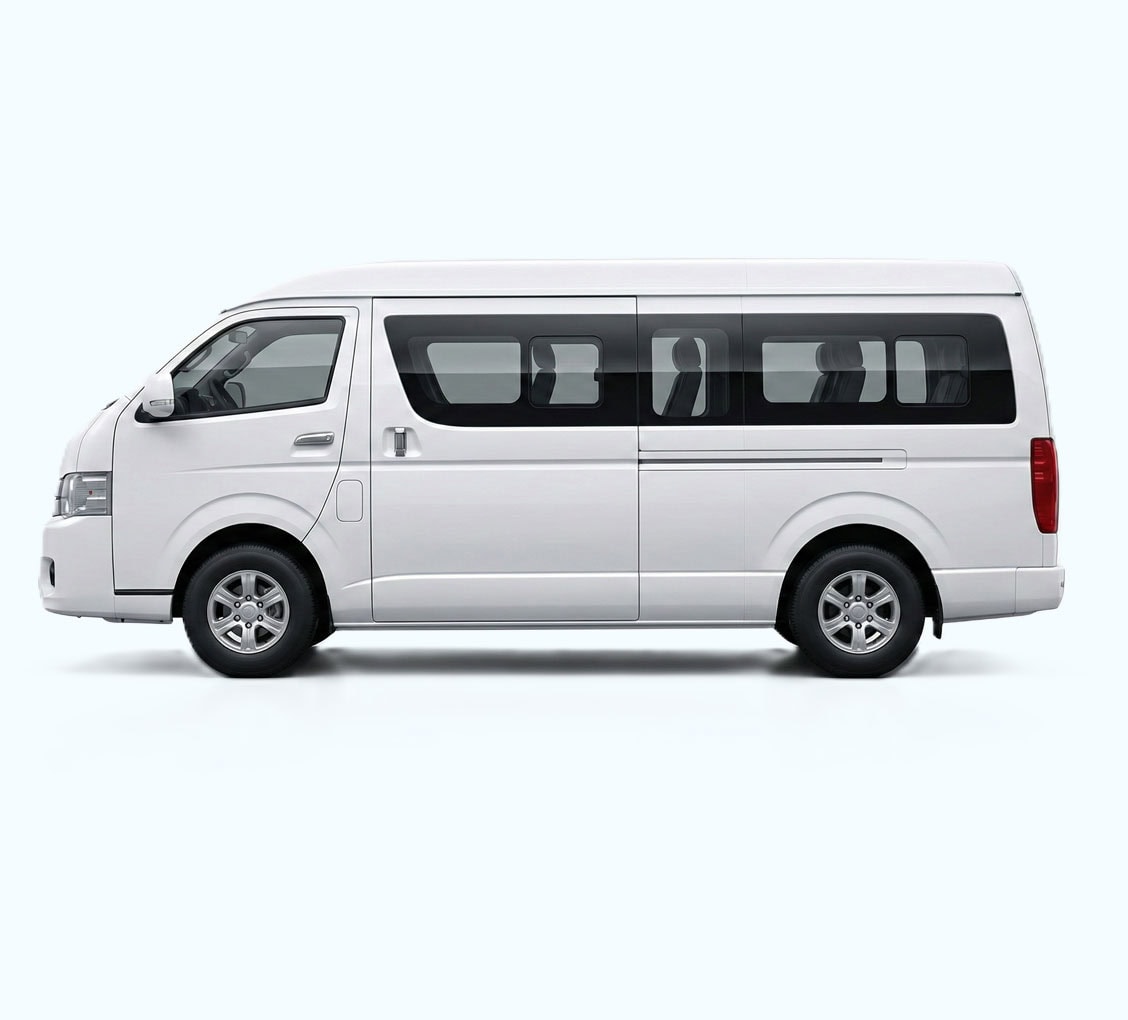

Orionis Javaz

5.4m Orionis Javaz is an electric mini bus designed for shuttle, commuter, and service vehicle applications. With a driving range of up to 350 km, maximum speed of up to 100 km/h, 72 kWh lithium iron phosphate battery, and capacity for up to 18 passengers, this vehicle is suitable for flexible urban transport, airport shuttle, executive transport, and high-value logistics operations.

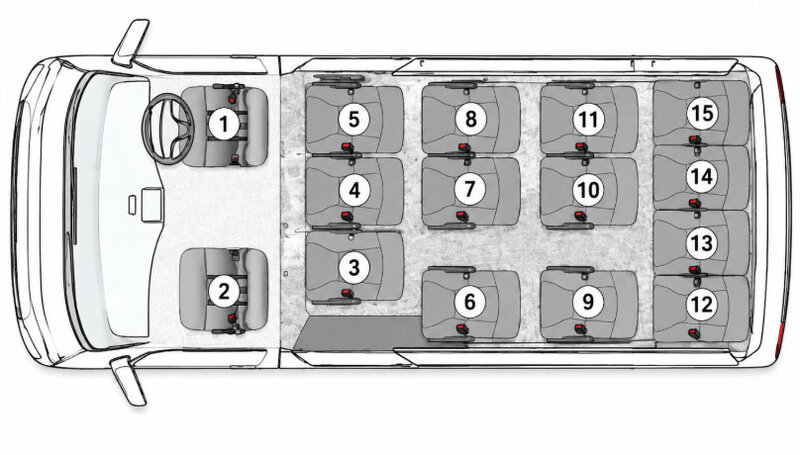

Seat Configuration

Specification

General

Brand	Wintrone
Product Type	5.4m Orionis Javaz
Product Classification	Mini Bus
Application	Shuttle, Commuter & Service Vehicle
Range	Up to 350 km
Max Speed	Up to 100 km/h

Dimensions

Length	5,452 mm
Width	1,705 mm
Height	2,285 mm
Wheelbase	3,110 mm
Suspension	Spring

Battery

Type	Lithium Iron Phosphate Battery
Capacity	72 kWh

Motor

Type	Permanent Magnet Synchronous Motor / PMSM
Power Rated / Peak	50 / 80 kW
Max Torque	Up to 130 Nm

Air Conditioner

Type	Air Duct System

Tires

Tire Size	195 R15C

Passenger

Capacity	Up to 18 Passengers
Passenger Door	A. Front Right & Left Side Swing Door B. Middle Right & Left Sliding Door
